수입 접시 스프링 (Disc Spring)

규격표

단위: mm · 수입 접시 스프링 (Disc Spring) · DIN 계열 · D · d · T · T₁ · H

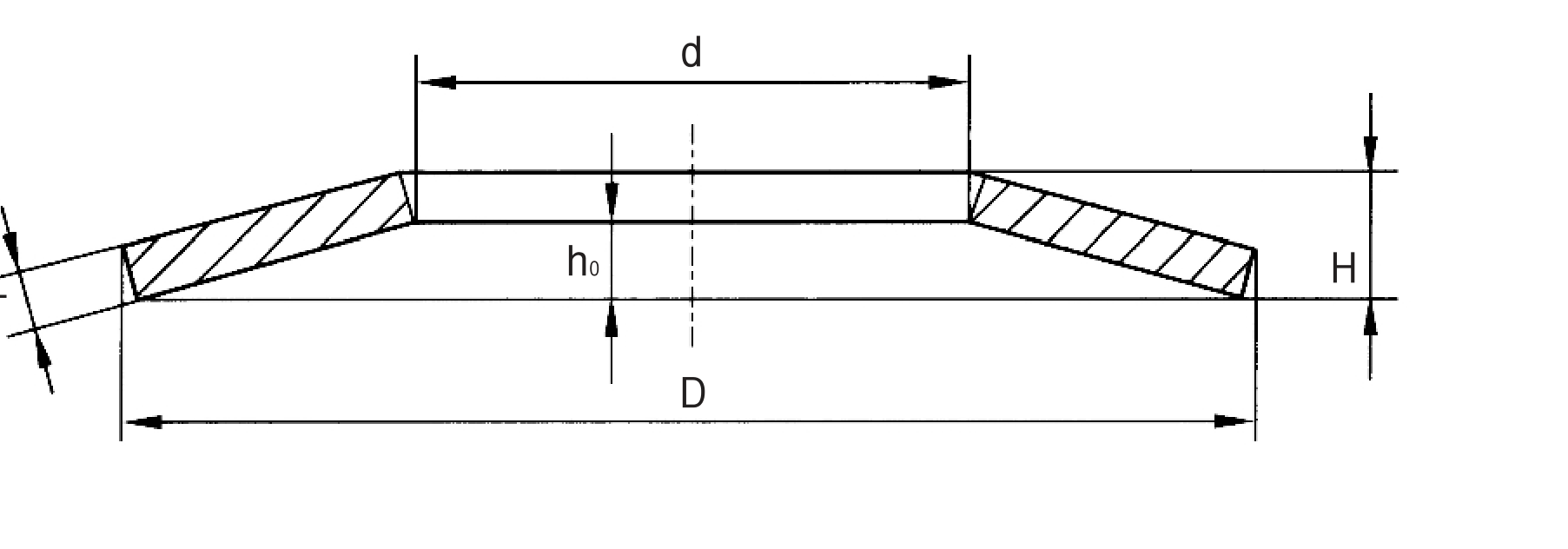

수입 접시 스프링 치수 도면 — 치수 기호 — d 내경 · D 외경 · T 두께 · T₁ 감육두께(일부) · H 자유높이

🔎 규격 빠른 찾기

D	d	T	T₁	H
8	3.2	0.3	–	0.55
8	3.2	0.4	–	0.6
8	3.2	0.5	–	0.7
8	4.2	0.2	–	0.45
8	4.2	0.3	–	0.55
8	4.2	0.4	–	0.6
10	3.2	0.3	–	0.65
10	3.2	0.4	–	0.7
10	3.2	0.5	–	0.85
10	4.2	0.4	–	0.7
10	4.2	0.5	–	0.75
10	4.2	0.6	–	0.85
10	5.2	0.25	–	0.55
10	5.2	0.4	–	0.7
10	5.2	0.5	–	0.75
12	4.2	0.4	–	0.8
12	4.2	0.5	–	0.9
12	4.2	0.6	–	1
12	5.2	0.5	–	0.9
12	5.2	0.6	–	0.95
12	6.2	0.5	–	0.85
12	6.2	0.6	–	0.95
12.5	6.2	0.35	–	0.8
12.5	6.2	0.5	–	0.85
12.5	6.2	0.7	–	1
14	7.2	0.35	–	0.8
14	7.2	0.5	–	0.9
14	7.2	0.8	–	1.1
15	5.2	0.4	–	0.95
15	5.2	0.5	–	1
15	5.2	0.6	–	1.05
15	5.2	0.7	–	1.25
15	6.2	0.5	–	1
15	6.2	0.6	–	1.05
15	6.2	0.7	–	1.1
15	8.2	0.7	–	1.1
15	8.2	0.8	–	1.2
16	8.2	0.4	–	0.9
16	8.2	0.6	–	1.05
16	8.2	0.9	–	1.25
18	6.2	0.4	–	1
18	6.2	0.5	–	1.1
18	6.2	0.6	–	1.2
18	6.2	0.7	–	1.4
18	6.2	0.8	–	1.5
18	8.2	0.7	–	1.25
18	8.2	0.8	–	1.3
18	8.2	1	–	1.5
18	9.2	0.45	–	1.05
18	9.2	0.7	–	1.2
18	9.2	1	–	1.4
20	8.2	0.5	–	1.15
20	8.2	0.6	–	1.3
20	8.2	0.7	–	1.35
20	8.2	0.8	–	1.4
20	8.2	0.9	–	1.5
20	8.2	1	–	1.6
20	10.2	0.4	–	0.9
20	10.2	0.5	–	1.15
20	10.2	0.8	–	1.35
20	10.2	0.9	–	1.45
20	10.2	1	–	1.55
20	10.2	1.1	–	1.55
22.5	11.2	0.6	–	1.4
22.5	11.2	0.8	–	1.45
22.5	11.2	1.25	–	1.75
23	8.2	0.7	–	1.5
23	8.2	0.8	–	1.55
23	8.2	0.9	–	1.7
23	10.2	0.9	–	1.65
23	10.2	1	–	1.7
23	12.2	1	–	1.6
23	12.2	1.25	–	1.85
23	12.2	1.5	–	2.1
25	12.2	0.7	–	1.6
25	12.2	0.9	–	1.6
25	12.2	1.5	–	2.05
28	10.2	0.8	–	1.75
28	10.2	1	–	2
28	10.2	1.25	–	2.25
28	10.2	1.5	–	2.2
28	12.2	1	–	1.95
28	12.2	1.25	–	2.1
28	12.2	1.5	–	2.25
28	14.2	0.8	–	1.8
28	14.2	1	–	1.8
28	14.2	1.25	–	2.1
28	14.2	1.5	–	2.15
31.5	16.3	0.8	–	1.85
31.5	16.3	1.25	–	2.15
31.5	16.3	1.5	–	2.4
31.5	16.3	1.75	–	2.45
31.5	16.3	2	–	2.75
34	12.3	1	–	2.2
34	12.3	1.25	–	2.45
34	12.3	1.5	–	2.7
34	14.3	1.25	–	2.4
34	14.3	1.5	–	2.55
34	16.3	1.5	–	2.55
34	16.3	2	–	2.85
35.5	18.3	0.9	–	2.05
35.5	18.3	1.25	–	2.25
35.5	18.3	2	–	2.8
40	14.3	1.25	–	2.65
40	14.3	1.5	–	2.8
40	14.3	1.75	–	3.05
40	14.3	2	–	3.05
40	16.3	1.5	–	2.8
40	16.3	1.75	–	3.1
40	16.3	2	–	3.1
40	18.3	2	–	3.15
40	20.4	1	–	2.3
40	20.4	1.5	–	2.65
40	20.4	2	–	3.1
40	20.4	2.25	–	3.15
40	20.4	2.5	–	3.45
45	22.4	1.25	–	2.85
45	22.4	1.75	–	3.05
45	22.4	2.5	–	3.5
48	16.3	1.5	–	3
50	18.4	1.25	–	2.85
50	18.4	1.5	–	3.15
50	18.4	2	–	3.65
50	18.4	2.5	–	4.15
50	18.4	3	–	4.2
50	20.4	2	–	3.5
50	20.4	2.5	–	3.85
50	22.4	2	–	3.6
50	22.4	2.5	–	3.9
50	25.4	1.25	–	2.85
50	25.4	1.5	–	3.1
50	25.4	2	–	3.4
50	25.4	2.25	–	3.75
50	25.4	2.5	–	3.9
50	25.4	3	–	4.1
56	28.5	1.5	–	3.45
56	28.5	2	–	3.6
56	28.5	2.5	–	4.2
56	28.5	3	–	4.3
60	20.5	2	–	4.2
60	20.5	2.5	–	4.7
60	20.5	3	–	5.2
60	25.5	2.5	–	4.4
60	25.5	3	–	4.65
60	30.5	2.5	–	4.5
60	30.5	2.75	–	4.75
60	30.5	3	–	4.7
60	30.5	3.5	–	5
63	31	1.8	–	4.15
63	31	2.5	–	4.25
63	31	3	–	4.7
63	31	3.5	–	4.9
70	24.5	3	–	5.3
70	24.5	3.5	–	6
70	25.5	2	–	4.5
70	30.5	2.5	–	4.9
70	30.5	3	–	5.1
70	35.5	3	–	5.1
70	35.5	3.5	–	5.3
70	35.5	4	–	5.8
70	35.5	4	3.75	5.8
70	40.5	4	–	5.7
70	40.5	4	3.75	5.7
70	40.5	5	–	6.4
70	40.5	5	4.7	6.4
71	36	2	–	4.6
71	36	2.5	–	4.5
71	36	4	–	5.6
71	36	4	3.75	5.6

D	d	T	T₁	H
80	30.5	2.5	–	5.3
80	31	3	–	5.5
80	31	4	–	6.1
80	31	4	3.75	6.1
80	35.5	4	–	6.2
80	35.5	4	3.75	6.2
80	36	3	–	5.7
80	41	2.25	–	5.2
80	41	3	–	5.3
80	41	4	–	6.2
80	41	4	3.75	6.2
80	41	5	–	6.7
80	41	5	4.7	6.7
90	46	2.5	–	5.7
90	46	3.5	–	6
90	46	5	–	7
90	46	5	4.7	7
100	41	4	–	7.2
100	41	4	3.8	7.2
100	41	5	–	7.75
100	41	5	4.7	7.75
100	51	2.7	–	6.2
100	51	3.5	–	6.3
100	51	4	–	7
100	51	4	3.8	7
100	51	5	–	7.8
100	51	5	4.7	7.8
100	51	6	–	8.2
100	51	6	5.6	8.2
100	51	7	6.55	9.2
112	57	3	–	6.9
112	57	4	–	7.2
112	57	4	3.75	7.2
112	57	6	–	8.5
112	57	6	5.6	8.5
125	51	4	–	8.5
125	51	4	3.8	8.5
125	51	5	–	8.9
125	51	5	4.75	8.9
125	51	6	–	9.4
125	51	6	5.65	9.4
125	61	5	–	9
125	61	5	4.75	9
125	61	6	–	9.6
125	61	6	5.6	9.6
125	61	8	7.5	10.9
125	64	3.5	–	8
125	64	5	–	8.5
125	64	5	4.7	8.5
125	64	6	–	9.6
125	64	6	5.6	9.6
125	64	7	6.55	10
125	64	8	7.5	10.6
125	71	6	–	9.3
125	71	6	5.6	9.3
125	71	8	7.45	10.9
125	71	10	9.3	11.8
140	72	3.8	–	8.7
140	72	5	–	9
140	72	5	4.7	9
140	72	8	7.5	11.2
150	61	5	–	10.3
150	61	5	4.75	10.3
150	61	6	–	10.8
150	61	6	5.7	10.8
150	61	7	6.55	11.8
150	71	6	–	10.85
150	71	6	5.6	10.85
150	71	8	7.5	12.05
150	81	8	7.5	12
150	81	10	9.4	13.4
160	82	4.3	–	9.9
160	82	4.3	4.15	9.9
160	82	6	–	10.5
160	82	6	5.6	10.5
160	82	10	9.4	13.5
160	82	11	10.2	14.5
180	92	4.8	–	11
180	92	4.8	4.6	11
180	92	6	–	11.1
180	92	6	5.6	11.1
180	92	10	9.4	14
180	92	13	12.1	16.5
200	82	5	4.8	10.5
200	82	6	5.8	13
200	82	8	7.5	14.2
200	82	8.5	8.1	14.5
200	82	10	9.4	15.5
200	82	12	11.25	16.6
200	82	13	12.1	16.5
200	92	10	9.4	15.6
200	92	12	11.25	16.8
200	92	14	13.05	18.1
200	102	5.5	–	12.5
200	102	5.5	5.3	12.5
200	102	8	7.5	13.6
200	102	8.3	7.8	14.3
200	102	9	8.6	14.6
200	102	10	9.4	15.6
200	102	11	10.3	15
200	102	12	11.25	16.2
200	102	14	13.05	18.2
200	112	6	5.8	12
200	112	12	11.25	16.2
200	112	14	13.05	17.5
200	112	15	14	18
200	112	16	14.8	19.8
225	112	6.5	6.2	13.6
225	112	8	7.5	14.5
225	112	9	8.45	15.5
225	112	10	9.4	16.2
225	112	10.8	10	16.5
225	112	12	11.25	17
225	112	16	14.9	20.5
250	102	10	9.4	18
250	102	12	11.25	19
250	127	7	6.7	14.8
250	127	7.5	7	16.5
250	127	8	7.5	16.6
250	127	9	8.45	16.6
250	127	9.2	8.6	17.4
250	127	10	9.4	17
250	127	10.5	9.9	18
250	127	11	10.4	18.8
250	127	12	11.25	19.3
250	127	13	12.2	19.6
250	127	13.5	12.6	19.6
250	127	14	13.1	19.6
250	127	14.5	13.6	20
250	127	15	14.1	21
250	127	16	14.9	21.8
250	127	16.8	15.65	22
250	127	17.5	16.35	22
250	127	18.5	17.3	23
270	127	10.65	10	18
270	142	22	–	26.9
280	127	12	11.4	21.4
280	127	19	18	25
280	142	12	11.3	21
280	142	15	14.1	21.4
280	142	16.6	15.6	23.25
280	142	17.45	16.4	23.9
280	142	18	16.9	24
280	142	18.9	17.8	24.6
280	142	20.3	19.1	25.4
280	142	22	20.65	26.35
280	152	12.8	11.9	19.8
280	152	15	14	21.4
280	152	18.5	17.4	23.6
300	127	12	11.3	21
300	127	13	12.3	20.5
300	127	14	13.3	21
300	127	15.3	–	22.8
300	127	16	15.2	24.3
300	127	17	16.1	23.8
300	127	17.4	16.45	22.65
300	152	8.5	8.25	16.8
300	152	10	9.4	20
300	152	12	11.3	21
300	152	13	12.2	22
300	152	14	13.2	22
300	152	14.5	13.6	22
300	152	15	14.1	23
300	152	15.5	14.6	23.5
300	152	16.1	15.1	23.7
300	152	16.5	–	23
300	152	17	16	24.4
300	152	18	16.8	25
300	152	18.5	17.4	25
300	152	19.5	18.3	26.2
300	152	20	18.8	25.5
300	152	20.5	19.3	26.5
300	182	12	11.1	18

재질: DIN 50CrV4 / 51CrV4 (JIS SUP10) · 용도: 스프링용 / 단위 mm / 표 항목: 외경 D · 내경 d · 두께 T · T₁(감육두께, 일부 규격) · 자유높이 H / T₁ 표기 없는 행은 감육 가공 없음, 표준 외 치수는 주문제작·문의.
